• Industrial robust design and compact metal housing
• High data speed via 4G LTE, 3G and 2G backward compatible
• Strong electromagnetic interference Resistance, heat endurance and radiation ability
• Supports multiple VPN (IPSec, OpenVPN, VPN Client, GRE, etc.)
• Supports multiple network protocol (ICMP, TCP, UDP, Telnet, SSH, HTTP, HTTPS etc.)
• Supports multiple functions (DHCP, DNS, DDNS, Firewall, NAT, DMZ host etc.)
• Built-in watch dog, Multi-link detection ensures working in stable and secure way
• Network failover and failback
• 2xLAN or 1xLAN + 1xWAN
• WAN port support PPPoE, static IP, DHCP client, 3G/4G.
• Always online, automatic reboot if disconnected to ensure continual connection
• LCP/ICMP/flow/heartbeat check, to ensure network usability
• Web/CLI/SSH/Management platform support, easy to configure
• SNMP network management, NTP support
• Local & remote management (configuration, status, upgrade firmware, ping, reboot)
• Supports Port forwarding and Bridge
• Supports timing operation
• Supports LED status indication
• Shock and vibration resistant
• Control by SMS, Email
• Schedule reboot
|
|
Module:
|
Sierra Wireless MC7455
|
|
Category:
|
Cat-6
|
|
Carrier Approvals:
|
AT&T, Verizon, Sprint and T-Mobile
|
|
Regulatory Approvals:
|
FCC, IC, CE, NCC, GCF, PTCRB
|
|
Frequency Bands:
|
4G LTE - B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41
3G - WCDMA B1, B2, B3, B4, B5, B8
|
|
Data Speeds LTE:
|
DL 300 Mbps/ UL 50 Mbps
|
|
|
|
Router:
|
|
|
VPN:
|
IPSec, PPTP/L2TP Client, GRE, PPTP Server
|
|
Protocol:
|
ICMP, TCP, UDP, Telnet, SSH, HTTP, HTTPS etc.
|
|
Management:
|
Local or remote web browser (IE v8 or above), CLI/Telnet command, Remote management, SSH configure
|
|
Interface Type:
|
2 x 10/100 Mbps port (RJ45)
LED: “WLAN”, “WAN”, “LAN”, “NET”
2 x SMA-K antenna interface
SIM/UIM: 1.8V/3V
Power: “PWR” 5V ~ 30V
Reset: “RST”
|
|
Power Adapter:
|
Certificate: FCC, UL
|
|
Power Consumption:
|
Idle: <45mA@12VDC
Data: <300mA@12VDC
Average:150mA@12VDC
|
|
Physical:
|
Operating Temperature
Storage: -40°C to 85°C
Working: -30°C to 75°C
Humidity: 95% Maximum (Non-condensing)
|
|
Dimensions:
|
Item (L x W x H): 4 x 2.9 x 1 Inch
Packaging (L x W x H): 8.6 x 4.7 x 3 Inch
Weight Item: 0.5 lbs.
Packaging: 1.5 lbs. total weight including product
|
|
Certificate:
|
FCC, ISO, CE, RoHS
|
|
Package Content:
|

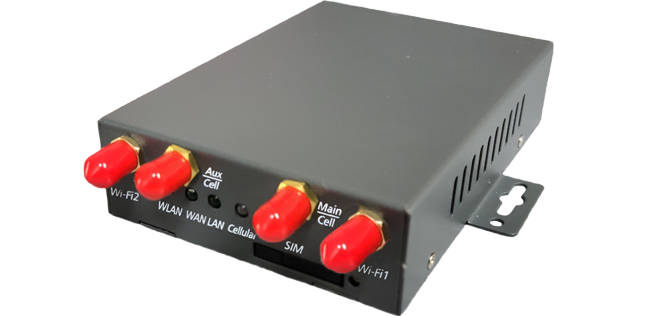

WTI 2 Port Router
CAT5 Ethernet Cable
Power Adapter
2 x Cellular Antenna - Mag Mount
|
|
Wifi:
|
Optional
|
|
